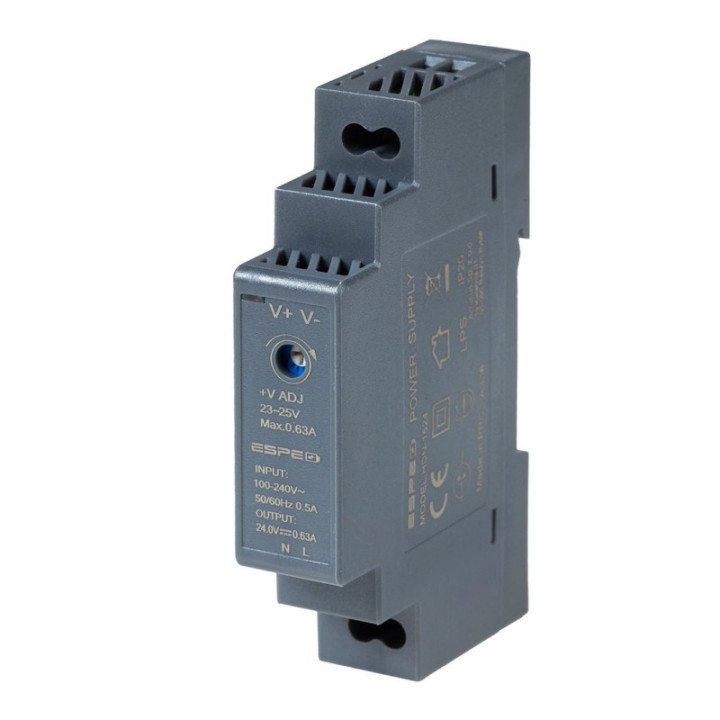

DIN rail power supply 24V 0.63A 15W ESPE

ESPE-HDN1524is a high-quality, efficient switching power supply in a plastic housing for mounting on a DIN rail TS35 mm wide 1U. Its design is based on high-class electronic components that enable continuous and long-lasting operation. The device is reliable, fully protected, and stable. It provides high efficiency and excellent technical parameters. The perforated housing ensures good ventilation, and the trimmer allows for precise voltage adjustment, compensating for voltage drops on the wires. The double output terminals facilitate the connection of receivers.

Specification

Input parameters

• Input voltage range: 100–240 VAC
• Input frequency range: 47–53 Hz
• Power consumption without load: below 0.25 W

Output parameters

• Regulation type: CV – constant output voltage
• Rated output voltage: 24 V
• Trimmer adjustment of output voltage: 23–25 V
• Rated output power: 15 W
• Rated load current: 0.63 A
• Maximum output voltage ripple: 150 mVp-p
• Energy conversion efficiency: above 85%

Additional information

• Operating temperature range: from 0 °C to +40 °C
• Output protections: overcurrent (OCP), short-circuit (SCP), overvoltage (OVP)
• Input protections: overvoltage (OVP), undervoltage (UVP)
• MTBF: 30 000 h
• Dimensions: 90 × 58 × 18 mm
• Weight: 70 g
• Housing: IP20
• Warranty: 5-year warranty

Characteristics

• Compact dimensions
• High output power
• Made of high-quality electronic components
• Versatile protections, low inrush current
• Voltage adjustment trimmer
• LED indicator signaling operation

Applications

• Industrial automation systems
• Alarm and monitoring systems
• Building automation installations
• Lighting systems
