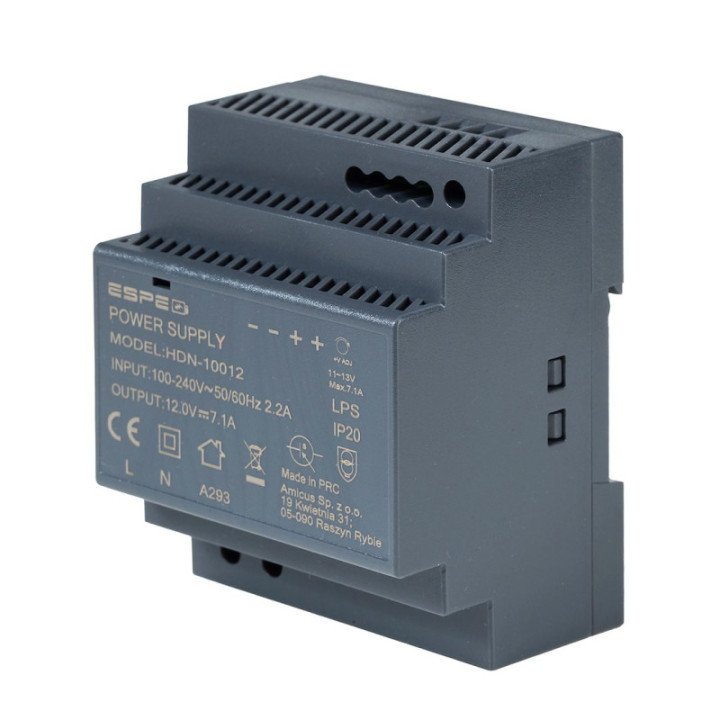

DIN rail power supply 12V 7.1A 85W ESPE

ESPE-HDN10012is a high-quality, efficient switching power supply in a plastic housing

Specification

Input parameters

• Input voltage range: 90–264 VAC
• Input frequency range: 47–53 Hz
• Power consumption without load: below 0.5 W

Output parameters

• Regulation type: CV – constant output voltage
• Nominal output voltage: 12 V
• Output voltage adjustment with trimmer: 11–13 V
• Nominal output power: 85 W
• Nominal load current: 7.1 A
• Maximum output voltage ripple: 150 mVp-p
• Energy conversion efficiency: above 89%

Additional information

• Operating temperature range: from 0 °C to +40 °C
• Output protections: overcurrent (OCP), short-circuit (SCP), overvoltage (OVP)
• Input protections: overvoltage (OVP), undervoltage (UVP)
• MTBF: 30 000 h
• Dimensions: 90 × 58 × 70 mm
• Weight: 240 g
• Housing: IP20
• Warranty: 5-year warranty

Characteristics

• Compact dimensions
• High output power
• Made of high-quality electronic components
• Versatile protections, low inrush current
• Voltage adjustment trimmer
• Perforated housing providing good ventilation
• LED indicator signaling operation
• Double output terminals

Applications

• Industrial automation systems
• Alarm and monitoring systems
• Building automation installations
• Lighting systems
