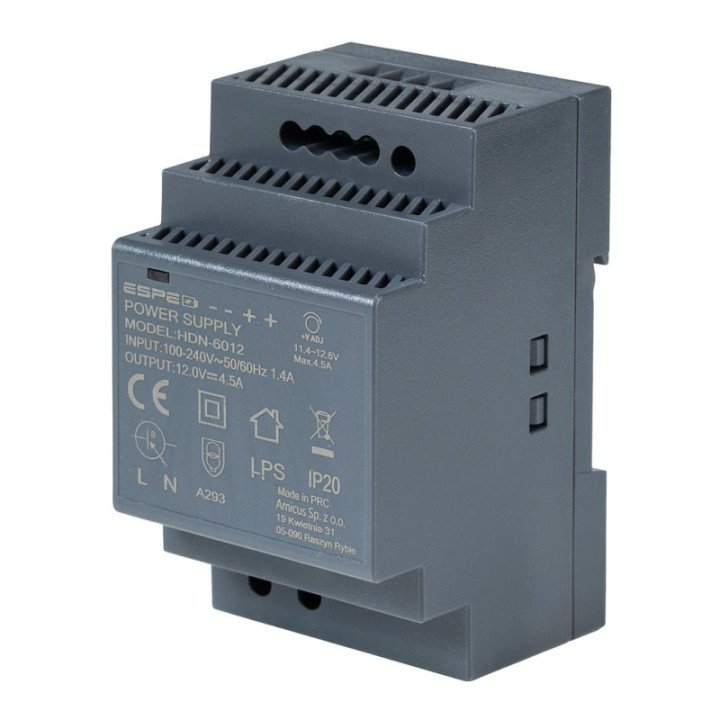

DIN rail power supply 12V 4.5A 54W ESPE

ESPE-HDN6012is a high-quality, efficient switching power supply in a plastic housing

Specification

Input parameters

• Input voltage range: 100–240 VAC
• Input frequency range: 47–53 Hz
• Power consumption without load: below 0.25 W

Output parameters

• Regulation type: CV – constant output voltage
• Nominal output voltage: 12 V
• Trimmer adjustment of output voltage: 11.4–12.6 V
• Rated output power: 54 W
• Rated load current: 4.5 A
• Maximum output voltage ripple: 150 mVp-p
• Energy conversion efficiency: above 86%

Additional information

• Operating temperature range: from 0 °C to +40 °C
• Output protections: overcurrent (OCP), short-circuit (SCP), overvoltage (OVP)
• Input protections: overvoltage (OVP), undervoltage (UVP)
• MTBF: 30 000 h
• Dimensions: 90 × 58 × 52 mm
• Weight: 182 g
• Housing: IP20
• Warranty: 5-year warranty

Characteristics

• Compact dimensions
• High output power
• Made of high-quality electronic components
• Versatile protections, low inrush current
• Voltage adjustment trimmer
• Perforated housing providing good ventilation
• LED indicator signaling operation

Applications

• Industrial automation systems
• Alarm and monitoring systems
• Building automation installations
• Lighting systems
