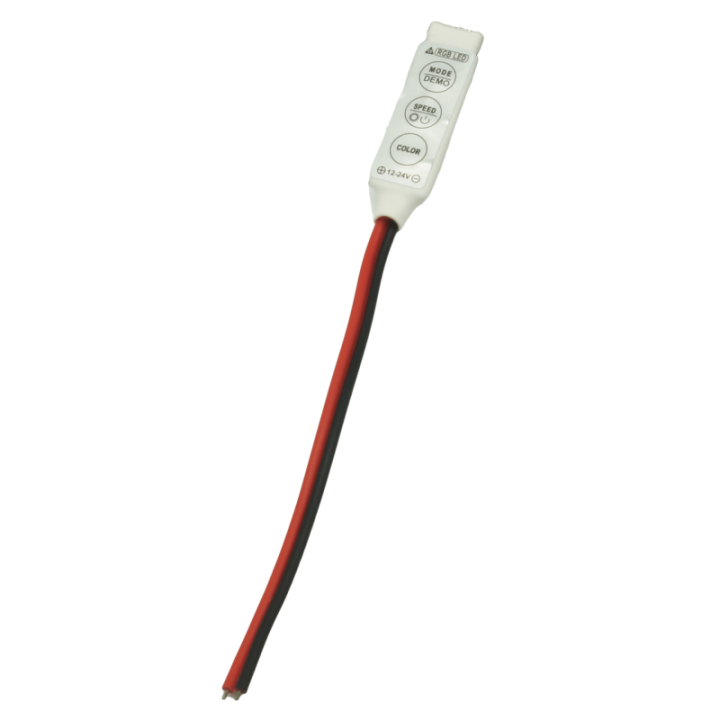

RGB LED controller without remote

Application:
For RGB LED installation
Control:
Controlled by three buttons on the PCB integrated with the cable
Input/output voltage of the controller:
12-24 V DC from the LED strip power supply
Max output current of the controller:
3x2A
Output power:
total channels: 72W for 12V144 W at 24 V
Brightness adjustment method:
PWM - pulse width modulation.
Memory of previous settings:
YES
Built-in lighting programs:
fixed brightness levels: RGB 19 programs, including white generation
on/off/brightening/dimming sequentially with one button. 5 brightness levels.
Operating temperature range and humidity:
-20 - 60°C humidity 30-85%
Dimmer connections to the installation:
Power cable 10 cm. Regulator integrated with the cable. Output for RGB strip via 4-pin LED socket
Set color:
black
Receiver dimensions:
40 x 13 x 7 mm
Warranty:
2 years
Certificates:
CE, RoHS
