ProVero under-cabinet switch

Supply voltage:

12 V DC /constant voltage e.g. from a LED lamp power supply/

Output voltage:

12 V DC

State after power failure:

off

Maximum power of controlled lamps:

60W at 12V; 100W at 24V

Maximum current output:

5A at 12V; 4A at 24V

Type of sensor:

capacitive

Sensor works through:

furniture boards, wood, glass, marble /maximum material thickness about 38 mm/

Operating temperature:

between -10°C and + 40°C

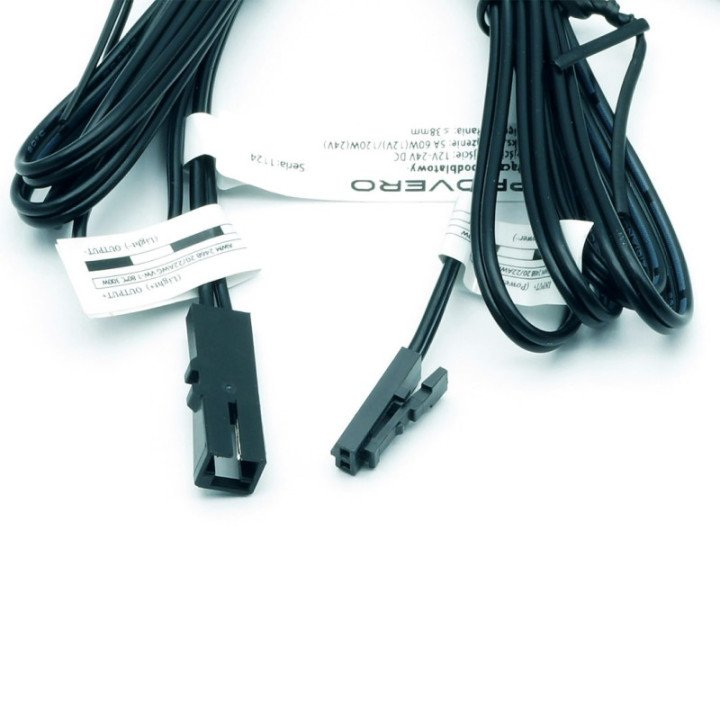

Wires:

2x1000mm wire terminated with JST mini

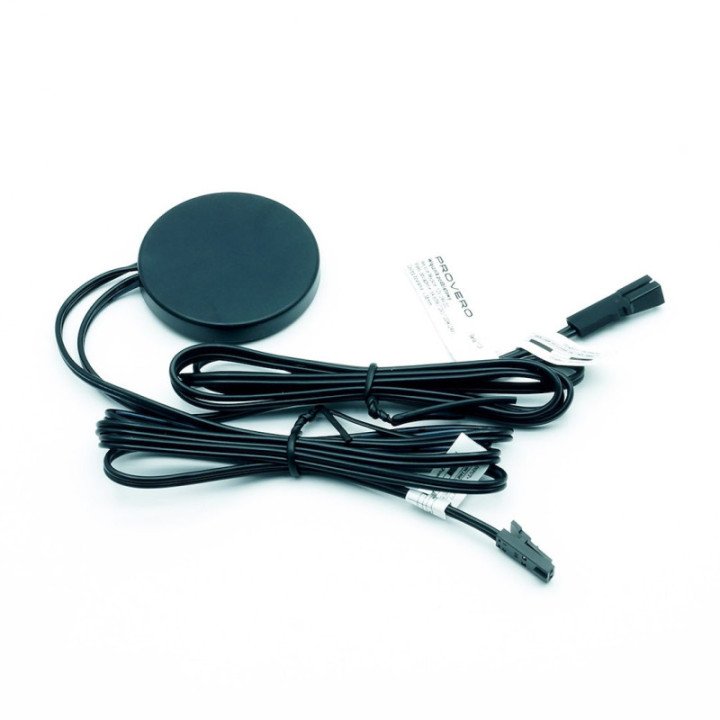

Main structural features:

plastic housing in the form of a disc with a diameter of 50mm and a height of 7mm, mounting with double-sided adhesive tape. / not included in the equipment. /

Degree of protection:

IP20

Declarations:

RoHS, CE

Warranty:

2 years

The device is intended forswitching on, switching off LED lighting. Can be usedon the invisible side of the furniture boardto control light functions. The switch is glued under the furniture boardwill remain invisible. Touch is detected up to a maximumthickness of the board 38 mm(depending on the density of the board).

Principle of operation:
Hand proximitywithin a few cm from the sensor causes it to switch states on/off. We ensure the effectiveness of the capacitive sensor for power supplies that do not require grounding - i.e. Class II and III protection.
