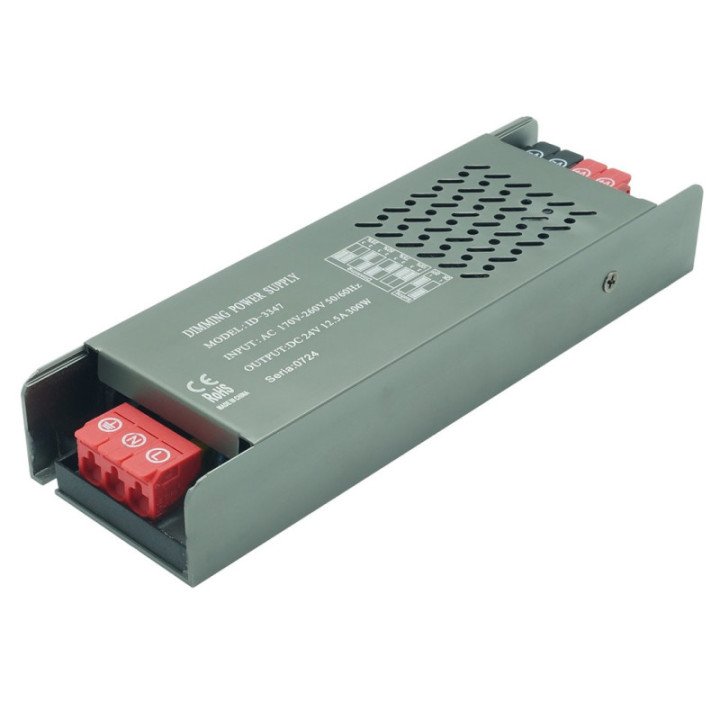

ULTRA SLIM PRO Set 24V DC 12.5A 300W configurable with SOFT START function

Name: ULTRA SLIM PRO Set 24V DC 12.5A 300W configurable with SOFT START function
Brand: IdeaLED
SKU: ID-3347
Price: 32.23 EUR
Availability: InStock

IdeaLED

€32.23

Tax included

Last items in stock

Brand

IdeaLED
Reference

ID-3347
In stock

3 Items

PROVERO ULTRA SLIM configurable power supply with SOFT START function 4 brightness modes24VDC 300W

AC mains voltage:

AC 170-260V

AC mains frequency:

50-60Hz

Stabilized output voltage DC:

requires the use of

Maximum continuous output power:

300W

Maximum output current:

12.5A

Operating temperature:

max. 45°C

Energy processing method:

switching power supply

Overload protection:

YES

Surge protection:

YES

Thermal protection:

YES

IP degree:

IP20

Connection method:

screwless connection

External dimensions:

192 x 59 x 31mm

SOFT START function:

YES (with on/off capability)

Dimming on the 24V side:

4 brightness setting modes for SMD strips 25%, 50%, 75%, 100%
3 brightness setting modes for COB strips 50%, 75%, 100%

Cooperation with a dimmer on the 230V side:

Warranty:

3 years

Certificates:

CE, RoHS

Power SupplyPROVERO ULTRA SLIMdesigned for indoor use. The product is made ofhigh-quality componentsthat have been placed ina solid aluminum housingin graphite color. The power supply is intended for powering LED lightingwith a voltage of 24VLED strips. Cooling occurs through free airflow throughthe perforated housing. The modular design allowson vertical and horizontal surfaces with two screws of max. diameter 3mm. The output voltage of 12V is safe for people.to both vertical and horizontal surfaces. Ability to activate soft start function (SOFT START).

Four brightness setting modes for SMD strips 25%, 50%, 75%, 100% and three brightness setting modes for COB 50%, 75%, 100%

The warranty does not cover mechanical damage.
We change the jumpers with the power supply turned off.
We gently slide the switch jumpers.
Screwless connections tilt 45^oto achieve the first slight resistance and we stop the movement, greater tilting will cause the lock to break and result in mechanical damage and loss of warranty.
