Touchless switch for profiles 12V 60W works through MOVE diffuser

Name: Touchless switch for profiles 12V 60W works through MOVE diffuser
Brand: IdeaLED
SKU: ID-0060
Price: 21.82 EUR
Availability: OutOfStock

IdeaLED

€21.82

Tax included

Out-of-Stock

Brand

IdeaLED
Reference

ID-0060

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Touchless switch and dimmer for installation in an aluminum profile

Supply voltage:

12-24 V DC /constant voltage e.g. from a LED lamp power supply/

Output voltage:

12-24 V DC with PWM pulse width modulation

State after power failure:

off

Maximum power of controlled lamps:

60 W

Maximum current output:

5 A

Type of sensor:

Motion detection (move). The sensitivity range of the sensor is a few cm from the spring placed between the printed circuit board (PCB) and the cover of the profile.

Operating temperature:

between -10°C and + 40°C

Main design features:

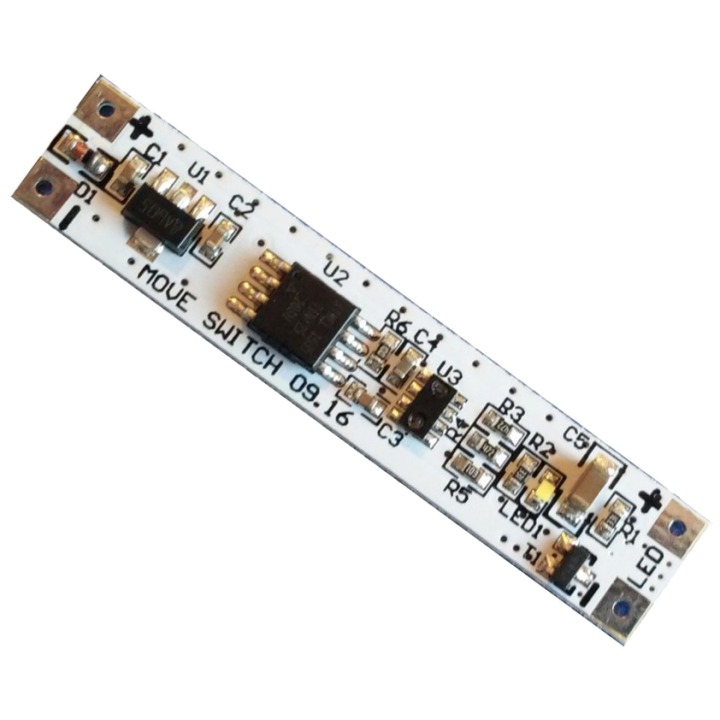

The device takes the form of a printed circuit board (PCB) measuring 10x80mm, allowing it to be placed in an aluminum profile between the LED strip and the power supply. The board has a contact area allowing for the soldering of connection wires.

Safety class:

Class III

Declarations:

RoHS, CE

Warranty:

2 years

The device is designed for touchless switching on and off. It can be used in an aluminum profile covered with a cover. The switchis invisiblefrom the outside of the housing.

Principle of operation:
Bringing a hand close within a few cm of the sensor causes it to switch states on/off. Holding the hand longer will cause dimming or changing the LED light. The operation and readiness of the device is indicated by a white LED.
