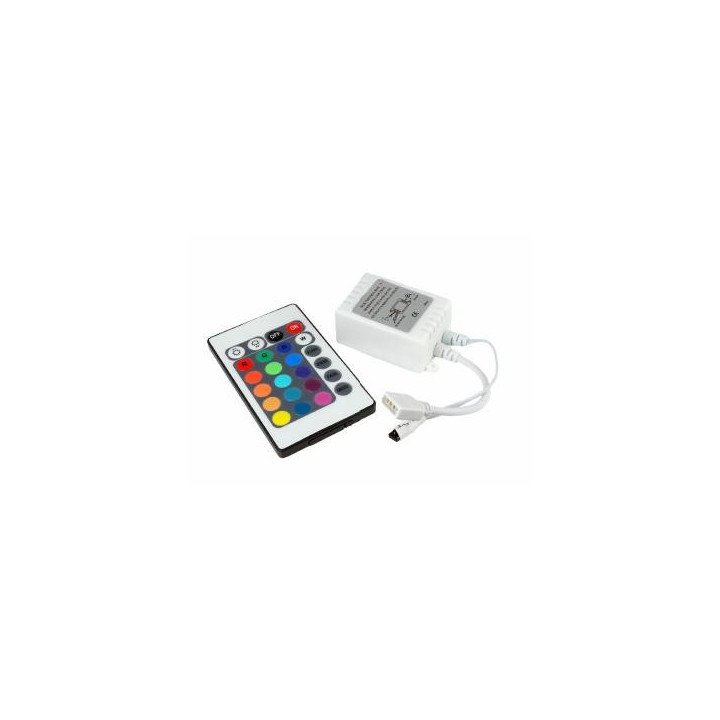

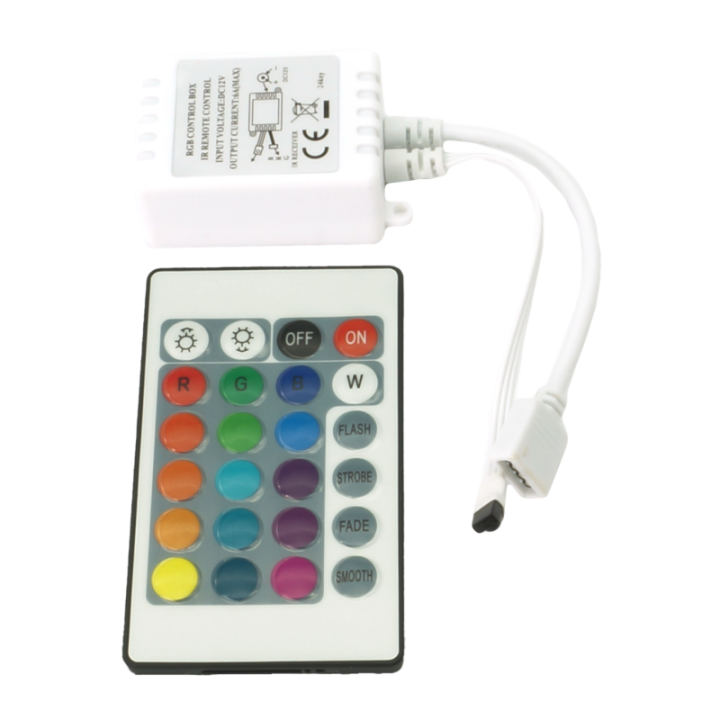

IR RGB Controller 24 buttons 72W white
IR RGB Controller 24 buttons 72W white

IR RGB Controller 24 buttons 72W white

IdeaLED
€1.91
Tax included

  • Brand
    IdeaLED
  • Reference
    ID-2085
  • In stock
    3772 Items
Share

Dimmer - RGB LED controller with infrared remote

Application:
For installation of multicolored RGB strips. Remote with receiver included.
Control:
24 buttons on the remote
Input/output voltage of the controller:
12V DC
Max output current of the controller:
3x2A. 6A - total channels in continuous operation
Output power:
total channels: 72W for 12V
Communication method with the remote:
Set of regulator + remote factory paired. The infrared connection requires direct optical contact of the remote with the IR sensor.
Output signal of the controller:
PWM - pulse width modulation.
Memory of previous settings:
YES - Power Off Memory
Built-in lighting programs:
setting brightness levels in static mode. Also white
brightening/dimming in 10 levels
ability to choose from 24 programmed dynamic transitions
ability to adjust the speed of dynamic transitions.
Operating temperature range and humidity:
-20 - 60°C humidity 30-85%
Connections of the dimmer to the installation:
DC socket 5.5/2.1mm in white for connection to the LED power supply. 4-pin female RGB LED output. Length of the wire with the IR sensor approx. 10 cm.
Receiver dimensions:
50 x 35 x 22 mm
Remote dimensions:
86 x 50 x 7 mm 33g
Remote power supply:
2025 or 2532 battery included in the set.
Warranty:
2 years
Certificates:
CE, RoHS
The set isan elegant complete and pairedcontroller with a remote designedfor controlling multicolor LED lighting. Allows for changing color and brightness intensity using an external remote. The regulator is powered from a 12V LED strip power supply and connected to the LED strip via a four-wire cable bundle.
The controller has a "Power Off memory" function – this means that the controller retains settings in case of power loss and restoration.
