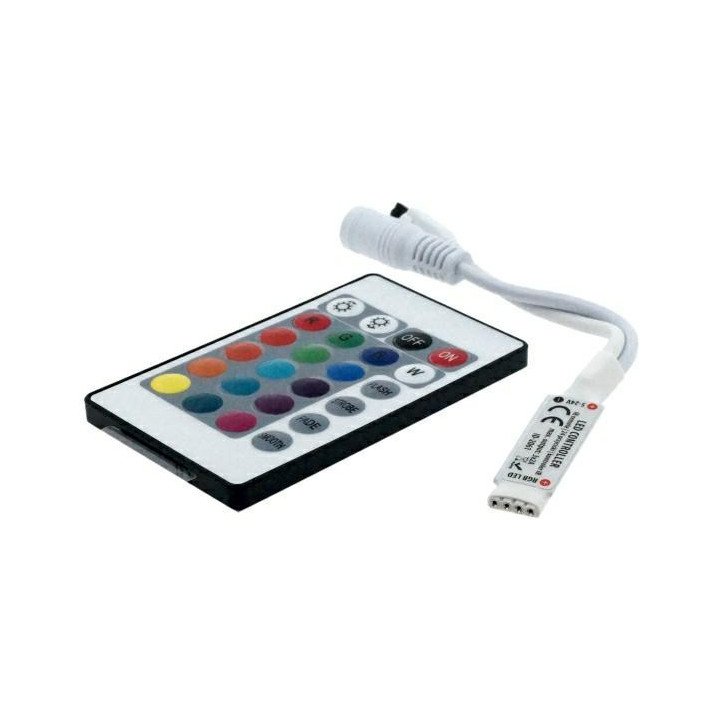

IR RGB Controller 24 buttons 72W off-white images
Dimmer - RGB LED controller with infrared remote
Application:
For installation of multicolor RGB strips. Remote control with receiver included.
Control:
24 buttons on the remote
Input/output voltage of the controller:
12V DC
Max output current of the controller:
1 output socket 3x2A. 6A - total channels in continuous operation
Output power:
total channels: 72W for 12V
Communication method with the remote:
Set includes factory-paired controller + remote. Infrared connection requires direct optical contact of the remote with the IR sensor.
Output signal of the controller:
PWM - pulse width modulation.
Built-in lighting programs:
turning on and off
smooth brightness adjustment
ability to choose from 16 programmed dynamic transitions
4 color change programs (flashing, smooth transitions, etc.)
smooth adjustment of color change speed in programs
smooth brightness adjustment
ability to choose from 16 programmed dynamic transitions
4 color change programs (flashing, smooth transitions, etc.)
smooth adjustment of color change speed in programs
Operating temperature range and humidity:
-20 - 60°C humidity 30-85%
Connections of the dimmer with the installation:
DC 5.5/2.1mm socket for connection to the LED power supply. 4-pin female RGB output. Receiver integrated with a cable about 10cm.
Set color:
black
Receiver dimensions:
36 x 13 x 7 mm
Remote dimensions:
86 x 51 x 7 mm 33g
Remote power supply:
2025 or 2532 battery included in the set.
Warranty:
2 years
Certificates:
CE, RoHS
The set includesan elegant complete and pairedcontroller with a remote designedfor controlling multicolor LED lighting. It allows for changing the color and brightness intensity using an external remote. The controller is powered by a 12V LED strip power supply and connected to the LED strip via a four-wire cable bundle.
