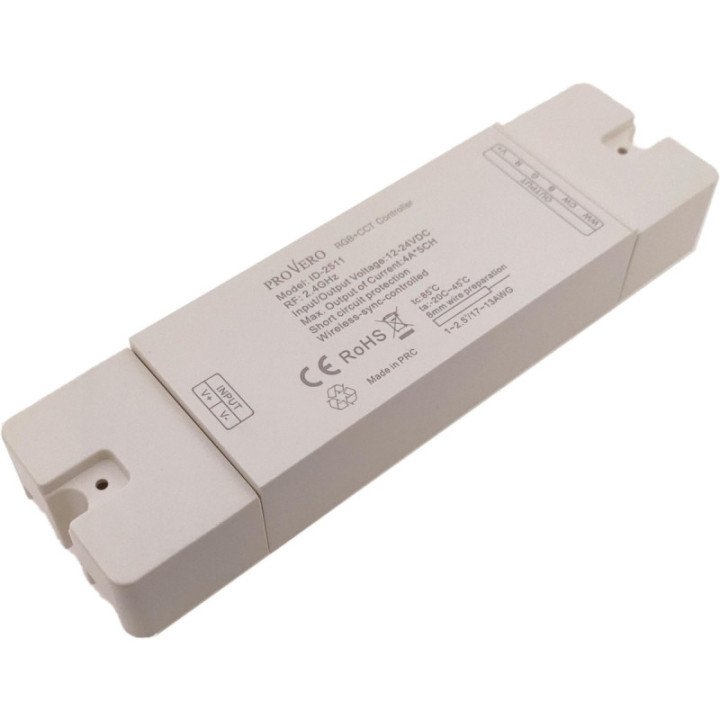

VOLTA RGB+CCT receiver 5*4A

Name: VOLTA RGB+CCT receiver 5*4A
Brand: IdeaLED
SKU: ID-2511
Price: 17 EUR
Availability: OutOfStock

IdeaLED

€17.00

Tax included

Out-of-Stock

Brand

IdeaLED
Reference

ID-2511

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

VOLTA PROVERO receiver
- RGB+CCT regulator 5*4A

Input voltage:

12 V – 24 V DC from the LED strip power supply with voltage stabilization

Max output current:

5*4Aper channel

Output power:

total of channels:240W for 12V

Connections to the installation:

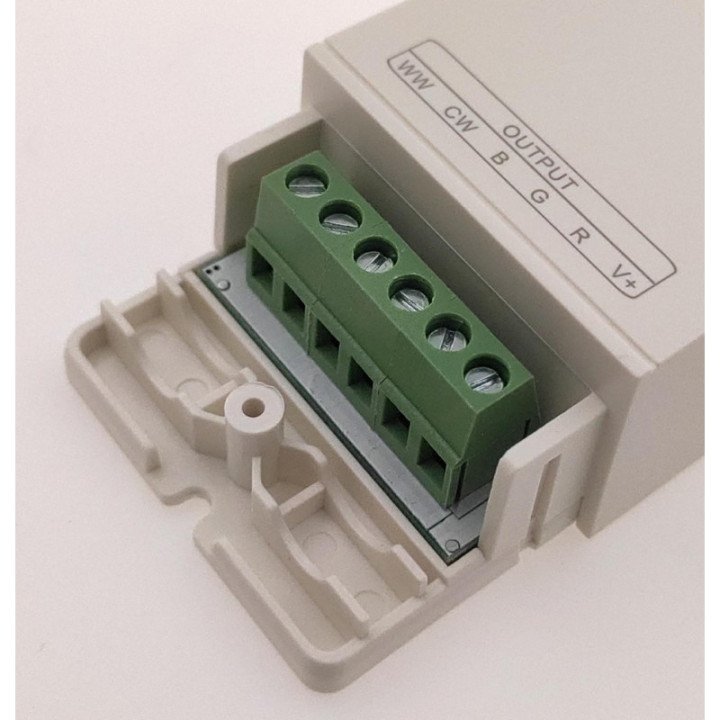

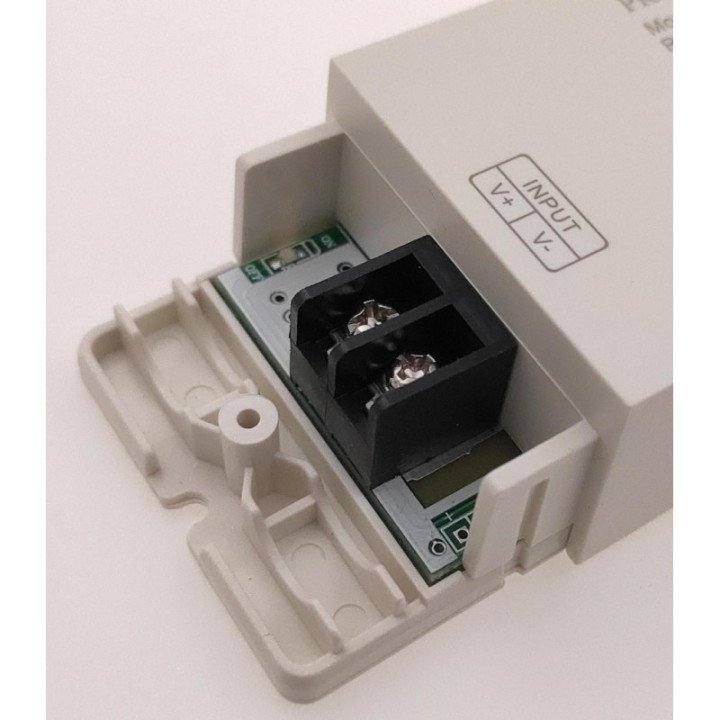

Terminal block for “+” and “-” on DC power supply and 6-wire on LED output - common anode V+, R, G, B, WC, WW. C-MOS output transistors in open drain configuration.

Communication method with the remote:

RF 2.4GHz radio channel. The set of regulator + remote must be paired according to the instructions before operation.

Radio communication range:

about 20 metersfrom the remote control in open terrain

Brightness adjustment method:

PWM. Pulse width modulation 2 kHz

Memory of previous settings:

YES

Operating temperature:

From -20°C to + 45°C

Receiver dimensions:

160 x 46 x 25 mm bright plastic housing.

Weight:

115g

Warranty:

3 years

Certificates:

CE, RoHS

Volta receiveris a device designed to work withRGB+CCT LED strip.The controller operatesin the range of 12-24V DC, the maximum power cannot exceed4A per channel.

The controller operates wirelessly in dynamic and static synchronization mode. Control of the controller is done using dedicated Volta remotes:

Receiver functions:

single color – dimming
CW+WW – adjustment of white light temperature from warm to cool
RGB – color selection from three primary colors
RGBW – color selection from 3 primary colors and cool white
5 fixed brightness levels: 10%, 30%, 50%, 70%, 100% in static mode. Selected with dedicated buttons
brightening / dimming in 1024 levels with each press, also in fast mode
ability to select programmed dynamic transitions and adjust the response speed to buttons
ability to adjust the speed of dynamic transitions
night mode – lighting with brightness from 1 to 10%. Night mode can be set

The VOLTA system allows synchronization with controllers from other lighting groups. Wireless-sync-controlled.
/VOLTA system - graphics/

The set is NOT factory paired. Please follow the pairing instructions provided below.
For receiver ID-2511, skip step 1

Specification:
Operating temperature: -20-60 Power supply voltage: DC12~24V
Output: 5*CMOS Control method: common anode
Maximum load: 4A/color Dimensions: L160*W46*H25 mm
Net weight: 115g Wireless synchronization system
PWM modulation frequency: 2KHz RF: 2.4GHz
The controller operates wirelessly in dynamic and static synchronization mode.
The controller is dedicated to work with VOLTA ID-2500 series remotes.
This is a controller designed for RGB+CCT strips.
