Parameters:

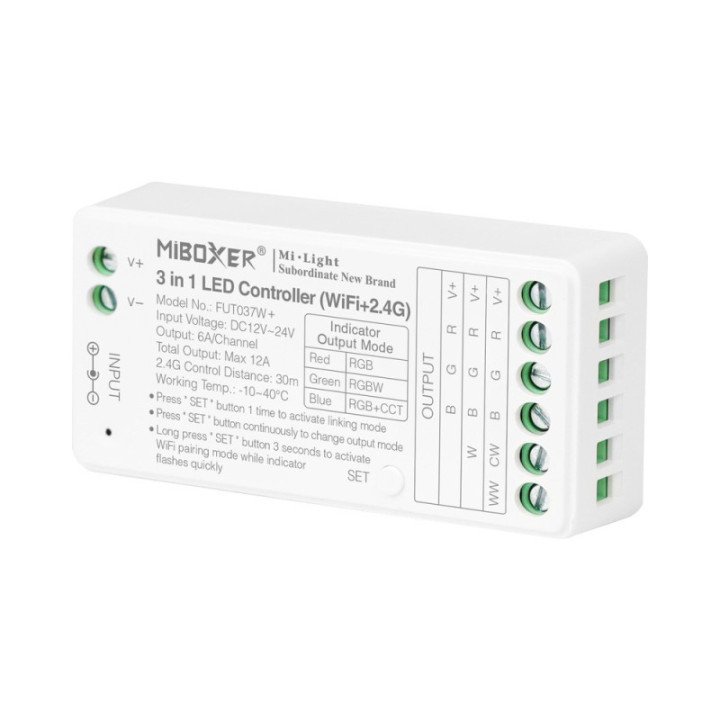

• Installation type: 3in1 with selection options (RGB/ RGB+W/ RGB+CCT)

• Lighting control system: PWM

• Lighting control method: WiFi and Bluetooth technology, additionally voice, radio, wireless (mobile app: tuya, alexa, 2.4Ghz)

• Output type of the controller: CV (constant voltage)

• Rated voltage: input/output - 12-24V DC

• Output current per channel: 6A

• Maximum output current: 12A

• Number of controller outputs: 5 outputs

• Output connection type: common anode

• Communication type: bidirectional

• Communication range: up to 30 meters in open terrain with the possibility of extending through signal retransmission

• Return to previous settings when turned off from the transmitter: yes

• Cooperation with external systems: Amazon Alexa system, Google Assistant (voice), Siri Shortcuts, IFTTT

• Operating temperature: from -10 to + 40°C

• Ingress protection class: IP20

• Installation: surface-mounted

• Additional functionality/feature: cooperation with Tuya Smart

• Dimensions: 74.4 x 36 x 17 mm

• Safety declarations and standards: CE, RoHs

• Manufacturer's warranty: 24 months
