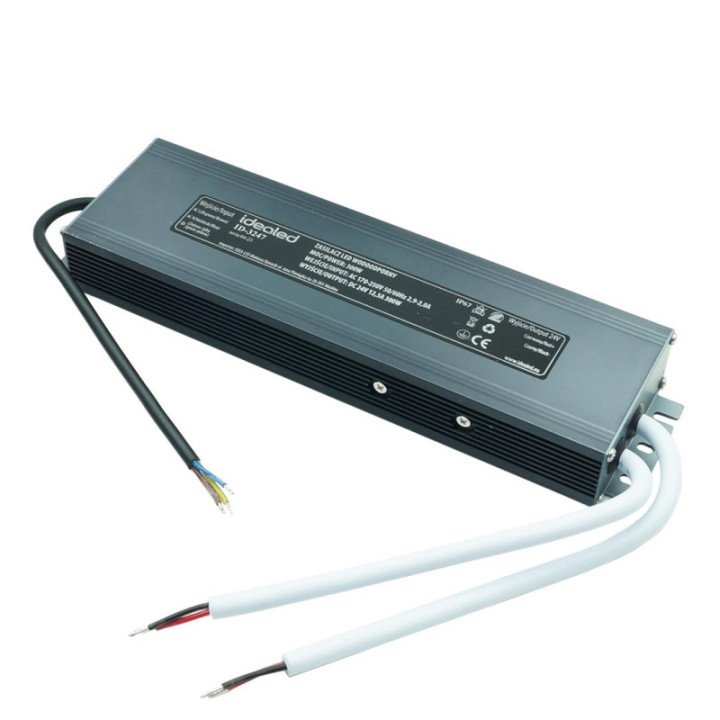

Waterproof power supply unit IP67 12.5A 300W 24V DC

Name: Waterproof power supply unit IP67 12.5A 300W 24V DC
Brand: IdeaLED
SKU: ID-3247
Price: 44.04 EUR
Availability: OutOfStock

IdeaLED

€44.04

Tax included

Out-of-Stock

Brand

IdeaLED
Reference

ID-3247

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Slim power supply for powering LED strips24V300W IP67

AC mains voltage:

AC 100 -250V

AC mains frequency:

50-60Hz

Stabilized output voltage DC:

requires the use of

Maximum continuous output power:

300W

Maximum output current:

12.5A

Operating temperature:

-30°C÷75°C

Protection from the load side:

switching power supply. Energy efficiency 89%

Protections:

overload (OCP),
overvoltage (OVP),
short-circuit (SCP),
thermal (OTP)

Connection method:

mounting wires approximately 20 cm long
input wire - 1x
output wires - 2x

IP degree:

IP67

Housing type:

housing made of aluminum profile

External dimensions:

256 x 66 x 29mm

Warranty:

2 years

Certificates:

CE, RoHS

The electronic design ensures highresistance to fluctuations in mains voltage, especially to impulse voltage spikes.This is very important forprotecting sensitive LED diodesand other components.

The use of a transformer galvanically isolates the load from the power grid, which is essentialfor electrical safetyof users. The output voltage of 24V is safe for people.

Due to the increased degree of protection (against the effects of temporary immersion in water and dust-tight protection), it will perform well in humid places and those exposed to rain, as well as in areas prone to dust.

Installation should ensure air exchange for cooling the power supply. Possibility of mounting with 4 screws with a max. diameter of 5mm (screws not included in the set).
