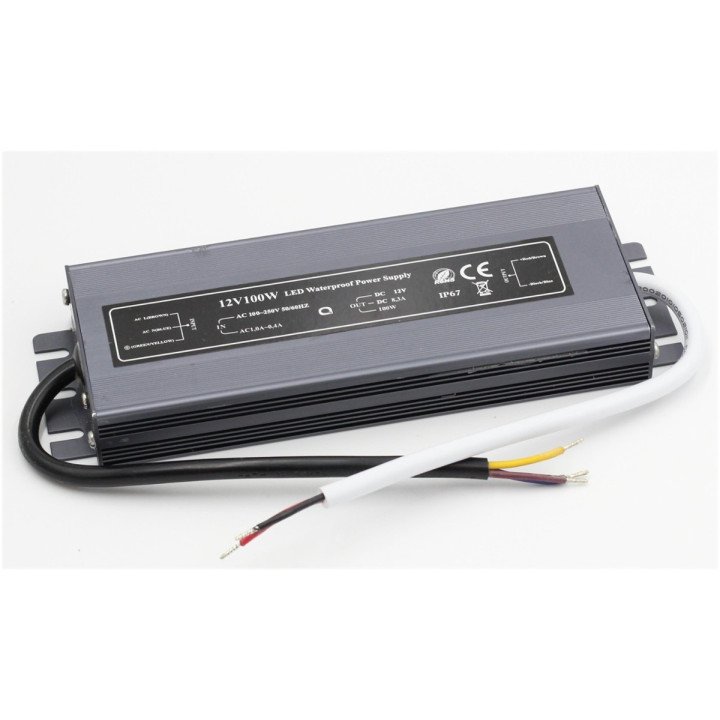

Waterproof power supply kit 8.3A 100W SLIM IP67 12V DC

Name: Waterproof power supply kit 8.3A 100W SLIM IP67 12V DC
Brand: IdeaLED
SKU: ID-3043
Price: 20.26 EUR
Availability: InStock

IdeaLED

€20.26

Tax included

Brand

IdeaLED
Reference

ID-3043
In stock

154 Items

Slim power supply for powering LED strips 12V 100W IP67

AC mains voltage:

AC 100 -250V

AC mains frequency:

50-60Hz

Stabilized output voltage DC:

12 V

Maximum continuous output power:

100W

Maximum output current:

8.3A

Operating temperature:

-30°C÷75°C

Protection from the load side:

switch-mode power supply. Energy efficiency 89%

Protections:

overload (OCP),
overvoltage (OVP),
short-circuit (SCP),
thermal (OTP)

Connection method:

mounting wires approximately 20 cm long

IP degree:

IP67

Housing type:

housing made of aluminum profile

External dimensions:

195 x 52 x 24mm

Warranty:

2 years

Certificates:

CE, RoHS

The electronic design ensures highresistance to fluctuations in mains voltage, especially to impulse voltage spikes.This is very important forprotecting sensitive LED diodesand other components.

The use of the transformer galvanically isolates the load from the power grid, which is fundamentallyimportant for electrical safetyusers. The output voltage of 12V is safe for people.

Due to the increased degree of protection (against the effects of temporary immersion in water and dust-tight protection), it will perform well in humid places and those exposed to rain, as well as in areas prone to dust.

Installation should ensure air exchange for cooling the power supply. Possibility of mounting with 4 screws with a max. diameter of 4mm (screws not included in the set).
